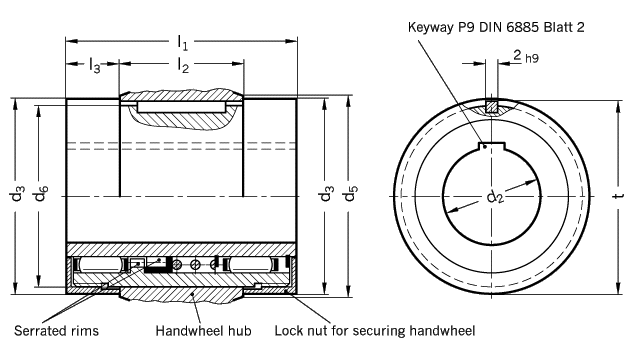

with needle bearings, for safety handwheels Coupling attachments |
GN 000.5 |
| No. | d1 | d2 H7 | d3 | d4 | d5 | d6 | l1 | l2 | l3 | t | w |
| Bore | max. | -0,05 | 0,1 | min. | |||||||
| Hand- | with | ||||||||||
| wheel | keyway | see | minim. | Bore | Length | see | |||||
| GN | safety | diameter | diameter | of hand- | safety | ||||||
| 321 | hand- | of hand- | of hub | wheel | hand- | ||||||
| 322 | wheels | wheel | d6H7 | hub | wheels | ||||||
| 323 | hub | ||||||||||
| 1 | 125 | K 12 | 29 | 17 | 29 | 25 | 42 | 18 | 12 | 26 | 4 |
| 140 | |||||||||||
| 2 | 140 | K 14 | 33 | 21 | 33 | 29 | 48 | 20 | 14 | 30 | 4 |
| 160 | |||||||||||
| 3 | 200 | K 18 | 39 | 26 | 39 | 35 | 50 | 24 | 13 | 36 | 4 |
| 4 | 250 | K 22 | 46 | 30 | 46 | 41 | 54 | 28 | 13 | 42 | 4 |
| Specification | Information | How to order |
| Steel
Bearing surfaces KeywayDIN 6885/2 |
The use of needle bearings and the hardened "bearing surfaces make the clutch engagement extremely easy. This is also assisted by the finer teeth of the clutch and the increased length of the coupling attachment. Its suitability for high shaft speeds, especially when these are maintained for long periods, is a further advantage of the needle bearing. An oil-hole is provided which in the completely assembled safety handwheel connects with the wheel hub. Further information for safety handwheelssee |
Coupling attachment GN 000.5-4-K22
Code No. 000.5 |
|
|
|
