homepageproduct overviewoverview group 1.6 clamp nuts gn 206tommy nuts with fixed bar din 6305





with double lever
Clamp nuts

GN 206.1

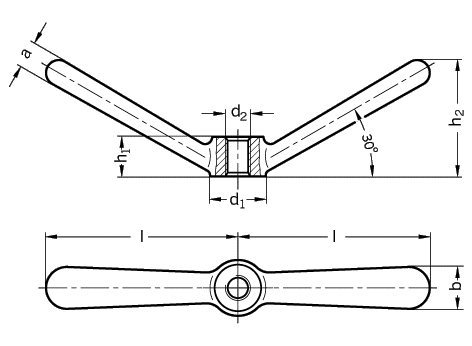

d1 d2 a b h1 h2 ~ l ~

16 M 8 7 12 12 34 56
20 M 10 9 14 14 42 70
25 M 12 11 18 18 53 87

32 M 16 15 22 22 66 109
40 M 20 18 28 28 84 140
Specification Information How to order
Malleable cast iron

fettled and tumbled

Contact faces machined

Clamp nuts with double lever GN 206.1 are solid components. Applications are, for example, in boilermaking and special purpose machinery.

Clamp nuts with double lever GN 99.7
(shafts butt-welded to nut)

St. Steel-Clamp nuts with double lever GN 99.8
(shafts butt-welded to nut)

Clamp nut
GN 206.1-32-M16

Code No. 206.1
d1 32
d2 M16



Clamp nuts with double lever GN 206.1, select, inquiry, order, CAD downloadclamp nuts gn 206tommy nuts with fixed bar din 6305
