Commercial cranked handles

GN 369

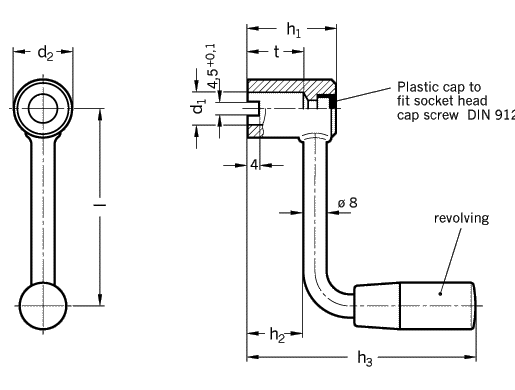

Type A without slot Type N with slot
Length l d1 H9 d2 h1 h2 h3 t +0,5 for screws
  Bore (B)           handpiece DIN 912

63 B 10 18 28 18 74 18 18 M 5
80 B 10 18 28 18 74 18 18 M 5
100 B 12 20 30 20 88 20 21 M 6

125 B 12 20 30 20 88 20 21 M 6
Specification Information How to order
Steel

shot-blasted and nickel plated

Crank butt-welded

Plastic cap black

Revolving handles GN 598
Plastic (Duroplast),
black

Commercial cranked handles GN 369 are for light duty applications and are of extremely good value. A suitable dowel in the shaft and the slot in the handle provides a cheap connection to the shaft. To secure the handle permanently to the shaft, "remove the plastic cap and insert screw.

Also a simple dowel connection is possible with Type A.

Due to the production method which is not dependent on a specific shape, these cranked handles can be produced as specials at a competitive price.

Commercial cranked
handle

GN 369-80-B10-N

Code No. 369
Length l 80
d1 B10
Type N
