with hold in both positions Retractable handles |
GN 598.3 |

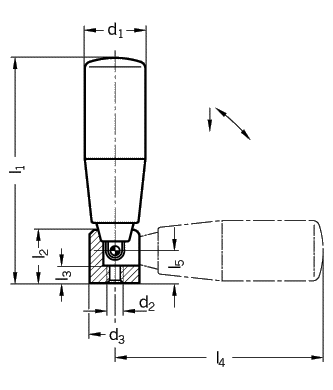

| d1 | d2 | d3 | l1 ~ | l2 | l3 | l4 ~ | l5 |
| 18 | M 5 | 16 | 57 | 15 | 5 | 52 | 8,5 |
| 21 | M 5 | 16 | 67 | 15 | 5 | 62 | 8,5 |
| 22 | M 5 | 16 | 73 | 15 | 5 | 68 | 8,5 |
| 23 | M 6 | 20 | 87 | 19,5 | 6 | 80 | 10,5 |
| 26 | M 6 | 20 | 102 | 19,5 | 6 | 95 | 10,5 |
| 28 | M 8 | 26 | 118 | 26 | 10 | 106 | 16 |
| Specification | Information | How to order |
| Handle Plastic (KU) Duroplast (Phenolic)
black shiny finish
Retractable mechanism |
Retractable handles GN 598.3 are suitable when the handle must be withdrawn during automatic operations. The handle is pulled out of its taper seating in the direction of the arrow and then tilted. A compression spring locks the handle in both end positions. A positive lock is achieved in the operating position by way of a taper seating. |
Retractable handle GN 598.3-KU-26
Code No. 598.3 |
|
|
|
