Indexing plungers |
GN 608 |

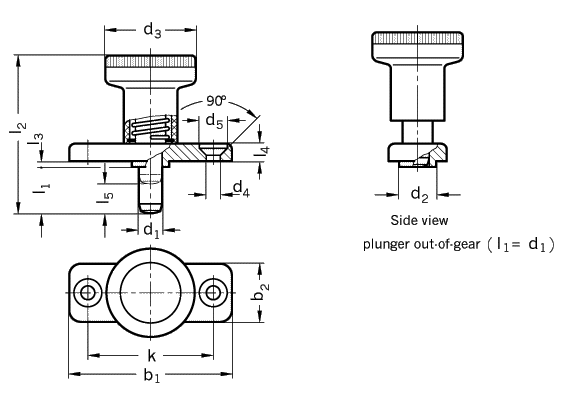

| d1 | l1 | b1 | b2 | d2 | d3 | d4 | d5 | k | l2 | l3 | l4 | l5 | Spring load N ~ | Axial | ||
| Plunger -0,02 -0,04 Bore H7 |
-0,02 -0,1 |
-0,15 | initial | end | load [N] | |||||||||||
| 6 | 6 | 14 | 40 | 18 | 10 | 25 | 4,3 | 8,3 | 30 | 37/45 | 2,5 | 4,5 | 6 | 8,5 | 22 | 400 |
| 8 | 8 | 18 | 46 | 20 | 12 | 31 | 5,3 | 10,4 | 34 | 44/54 | 2,5 | 5,5 | 8 | 15,5 | 28 | 500 |
| Specification | Information | How to order |
| Body Zinc die casting zinc plated Plunger steel Knob |
A special feature of indexing plungers GN 608 is
their reduced dimension. This concept has been introduced for mounting on
thin walled parts by means of countersunk screws or rivets.
Indexing plungersGN 607 |
Indexing plunger GN 608-8-18 Code
No. 608 |
|
|
