PUSH to disengage
Adjustable clamping levers

GN 6337.3

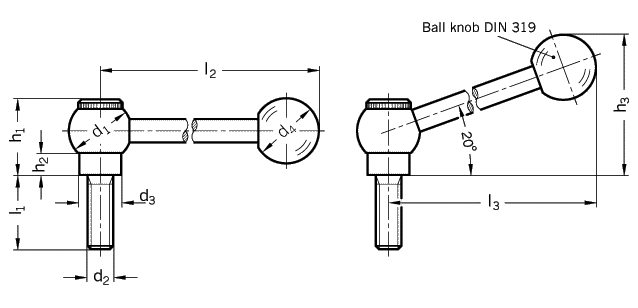

Type M straight lever Type N angled lever
d1 d2 Length l1 d3 d4 h1 h2 h3 ~ l2 l3 ~

20 M 8 20 25 32 40 50 63 13,5 20 25 8 46 74 70
25 M 10 20 25 32 40 50 63 16 25 29 8 58 93 87
28 M 12 25 32 40 50 63 80 19 30 33,5 10,5 70,5 116 109
Specification Information How to order
Steel

Body turned and polished

blackened

Ball knob DIN 319
Plastic, black

Adjustable clamping levers GN 6337.3 have proved to be ideal whenever parts have to be clamped in a confined space or a particular lever position is required. The insert is connected by the lever via serrations in the ball bore which can be disengaged.

Pushing the lever down, disengages the serrations and the lever can be swivelled to the ideal clamping position. Engagement is achieved by releasing the lever.

Should a rotation of 360 degrees not be possible, the insert can be lightly screwed in (after the lever is disengaged) via a slot in the knurled screw.

Adjustable clamping lever
GN 6337.3-28-M12-50-N

Code No. 6337.3
d1 28
d2 M12
l1 50
Type N



Adjustable clamping levers PUSH to disengage GN 6337.3, select, inquiry, order, CAD downloadadjustable clamping levers push to disengage gn 6337.3ratchet spanner gn 317
