Ledge handles

GN 730

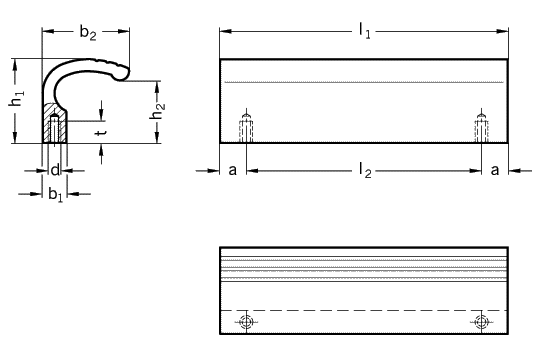

Length l1 d a b1 b2 h1 h2 l2 t
                min.

110 M6 10 9,5 33 32 24 90 9
125 M6 10 9,5 33 32 24 105 9
140 M6 10 9,5 33 32 24 120 9
Specification Information How to order
Aluminum

Plastic coated
black (SW)
RAL 9005 textured finish

anodized (EL) natural colour

blank (BL)
tumbled

A typical field of application is on hinged protective doors on machinery and installations.

Manufacture from aluminum extrusion allows the production of non-standard lengths.

Ledge handle
GN 730-125-SW

Code No. 730
Length l1 125
Finish SW
