Double cam levers

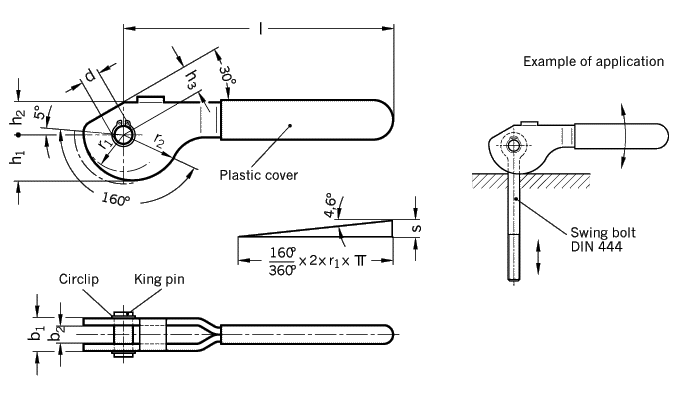

GN 917


d b1 b2 h1 h2 h3 l r1 r2 s r2 - h3
                  Stroke Total
                  coil stroke

8 13 9 19,54 14 12 114 17,2 21,07 3,87 9,07
10 17 12 24,54 17 17 138 21,6 26,45 4,85 11,45
12 20 14 31,81 21 21 157 28 34,29 6,29 16,29
Specification Information How to order
Steel
St 52-3
German Standard No. 1.0570

blackened

King pin
Stainless Steel
German Standard No. 1.4021
tempered

Circlip
Stainless Steel
German Standard No. 1.4310

Plastic handle sleeve
red, oil resistant
Temperature resistant up to 60 �C

 Double cam levers GN 917 are used for repositioning and clamping. The eccentrical cam has the advantage that the clamping force remains constant in every position of its travel and in addition is self locking.

The dimension b2 is made to match the head size of swing bolts DIN 444 and swing nut GN 444.2 respectively.

Swing bolts DIN 444

Swing nut GN 444.2

Hubs with eccentrical camGN 919

 Double cam lever
GN 917-10-17

Code No. 917
d 10
b1 17
