Revolving handles |
Extract from DIN 98 |

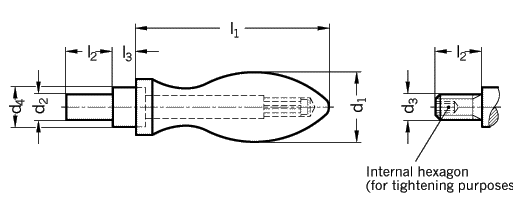

| Type D with plain shaft | Type E with threaded shaft |
| d1 | d2 h8 | d3 | d4 h13 | l1 | l2 | l3 | Internal |
| Type D | Type E | hexagon | |||||
| 16 | 7 | M 6 | 10 | 49 | 11 | 5,5 | 3 |
| 20 | 8 | M 8 | 13 | 61 | 13 | 6 | 4 |
| 25 | 10 | M 10 | 16 | 75 | 14 | 8 | 5 |
| 32 | 13 | M 12 | 20 | 95 | 21 | 10,5 | 6 |
| 36 | 16 | M 16 | 22 | 106 | 26 | 11 | 8 |
| Specification | Information | How to order |
| Steel (ST) all sizes turned and polished
Aluminum (AL)
Plastic (KT)
Spindle steel |
This handle is supplied unassembled so that the shaft can be press fitted or screwed into a tapped blind bore prior to assembly. | Revolving handle DIN 98-KT-32-D
Code No. 98 |
|
|
|
