Clamping levers |
Extract from DIN 99 |

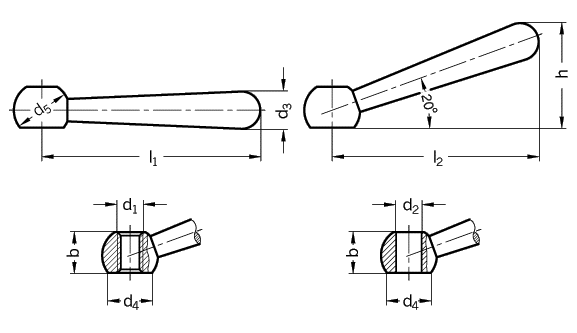

| Type K straight lever with plain bore, Tol. H7 | Type L angled lever with plain bore, Tol. H7 |
| Type M straight lever with threaded bore | Type N angled lever with threaded bore |
| l1 | d1 | d2 H7 | b | d3 | d4 ~ | d5 | h ~ | l2 ~ |
| Thread | Bore (B) | |||||||
| 50 | M 6 | B 6 | 9,5 | 8 | 11 | 12 | 24 | 48 |
| 63 | M 8 | B 8 | 12 | 10 | 12,5 | 16 | 30,5 | 60 |
| 80 | M 10 | B 10 | 14,5 | 13 | 16 | 20 | 38 | 76 |
| 100 | M 12 | B 12 | 18,5 | 16 | 20 | 25 | 47 | 95 |
| 125 | M 16 | B 16 | 24 | 20 | 25 | 32 | 59,5 | 119 |
| 160 | M 20 | B 20 | 30 | 25 | 31 | 40 | 76 | 152 |
| 200 | M 24 | B 24 | 40 | 32 | 34,5 | 50 | 97 | 190 |
| Specification | Information | How to order |
| Steel turned and polished |
Clamping levers DIN 99 Type A can be supplied without bore and flats i. e. with a solid ball.
Clamping levers GN 99.4
Clamp nuts GN 99.5 |
Clamping lever DIN 99-100-M12-N
Code No. 99 |
|
|
|
