Locks |
GN 115 |

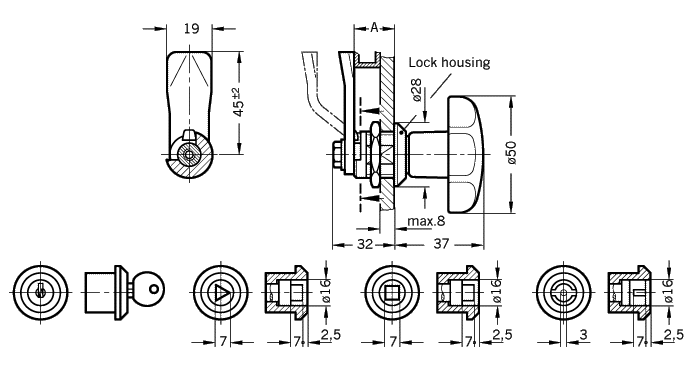

| Type DK Operation with triangular spindle | |
| Type SG Operation with Star knob | Type VK Operation with square spindle |
| Type SC Operation with key (lockable) | Type VDE Operation with double bit |
| Latch distance A | ||||||||||
| 4 | 8 | 13 | 16 | 20 | 24 | 28 | 32 | 36 | 40 | 45 |
| 6 | 10 | 14 | 18 | 22 | 26 | 30 | 34 | 38 | 42 | 50 |
| Specification | Information | How to order | |
| Lock housing Zinc pressure, die casting chrome plated
All other parts
Hand knob plastic |
Locks GN115 are low cost. They offer a straightforward locking action rather than a locking and clamping action. The choice of 22 differently shaped catch plates gives a range A of 4 to 50 mm. Lockable locks (Type SC) are always supplied with 2 keys. The key can be removed from the lock in both open and locked positions. In their standard form all locks can be operated with the identical key. Locks requiring different keys are available on request. |
Lock GN 115-VK-20
Code No. 115 |
|
| Key for triangle spindle GN 119.1-DK
Key for square spindle
Key with double bit |
Lock GN 115 are supplied disassembled. | ||
|
|
|
