for weld mounting Hinges |
GN 128 |
| Type ST fulcrum pin in steel | � Type MS fulcrum pin in brass |

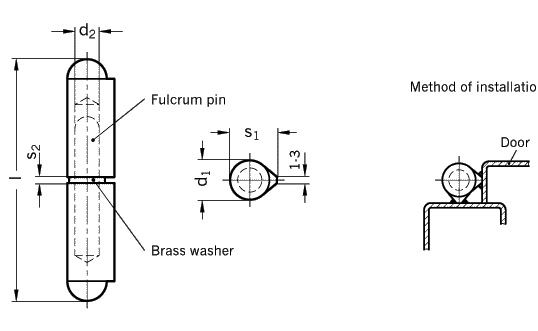

| Length l | d1 | d2 | s1 | s2 | |
| Fulcrum pin | |||||
| 40 | 8 | 5 | 10 | 2 | |
| 60 | 10 | 6 | 12 | 2 | |
| 80 | 13 | 8 | 15,5 | 2 | |
| 100 | 16 | 10 | 20 | 3 | |
| �135 | 18 | 12 | 23 | 3 | |
| �180 | 20 | 14 | 25,5 | 3 | |
| �200 | 23 | 16 | 28,5 | 3 |
| Specification | Information | How to order |
| Steel blank
Washer |
Hinges GN 128 are produced from drawn weldable profiled steel extrusions. The fulcrum pin is retained in the lower half. |
Hinge GN 128-80-ST
Code No. 128
The sizes and types marked with � are normally not stocked, but they are available subject to a minimum order quantity. |
|
|
|
