  		 with limit switch

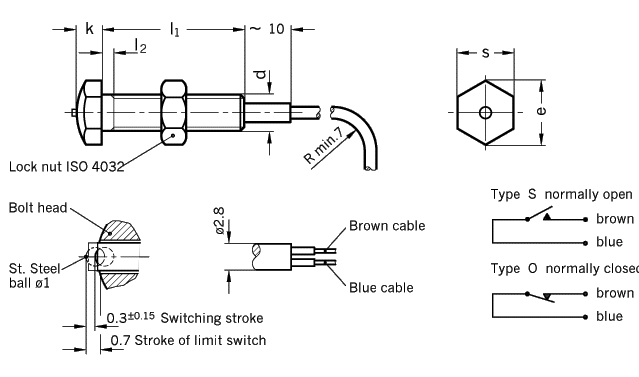

Setting bolts
GN 251.1


Type A without locknut Version S normally open
Type AK with locknut Version O normally closed
d Length l1     e k l2 max. s

M 6 30 40   11,5 4 3 10
M 8 30 40 50 15 5,5 4 13
M 10 30 40 50 19,5 7 5 17

M 12 40 50 22 8 5 19
Specification Information How to order
Bolt

Steel
Tensile strength 500 N/mm2

Hexagon head
hardened to HRC45

nickel plated

End stop switch:
Voltage: 24 V
Switching load: 20 mA DC
  50 mA AC

Switch life: 5 x 106 operations
Temperature range:
from -10 �C up to +50 �C
Protection classification: IP40
further information available

Supply cable
� 2,8; 2-phase
max. tensile load 20 N
grey for version S
(normally open)
black for version O
(normally closed)

 End stop bolts GN251.1 are supplied with a hardened round head which serves as a firm end stop. In general these bolts are installed with a locknut.

When the workpiece contacts the bolt head an electrical signal is transmitted by means of the limit switch.

Attention:

If the screw-in thread is earthed, the blue cable has to be connected to the mass.

 Setting bolt
GN 251.1-M10-30-AK-S

Code No. 251.1
d M10
l1 30
Type AK
Version S
