internal parts St. Steel Adjustable hand levers |
GN 300.1 |

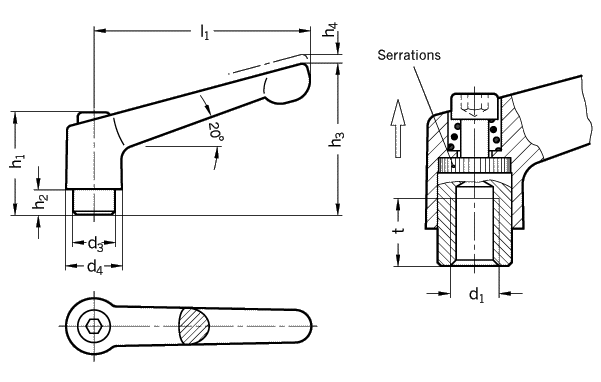

| l1 | d1 | d3 | d4 | h1 | h2 | h3 | h4 | t | ||
| metric / UNC / UNF | ||||||||||
| 45 | M 5 | M 6 | � | 10 | 13 | 24,5 | 4 | 35 | 3,5 | 8 |
| 10 x 24 | 10 x 32 | 1/4 x 20 | ||||||||
| 63 | M 6 | M 8 | � | 13,5 | 17,5 | 31 | 6,5 | 45 | 4 | 10 |
| 1/4 x 20 | 5/16 x 18 | � | ||||||||
| 78 | M 8 | M 10 | � | 16 | 21 | 36 | 8 | 55 | 4 | 14 |
| 3/8 x 16 | 5/16 x 18 | � | ||||||||
| 92 | M 10 | M 12 | � | 19 | 24 | 43 | 11 | 65 | 4 | 17 |
| 3/8 x 16 | 1/2 x 13 | � | ||||||||
| 108 | M 12 | M 16 | � | 23 | 30 | 50,5 | 12 | 76 | 5 | 22 |
| Specification | Information | How to order |
| Handle Zinc die cast
Plastic coated chrome-plated (CR) uncoated (RH)
Internal parts |
Adjustable hand levers GN 300.1 are the result of modern industrial design incorporating a particularly handy shape in addition to ergonomic aspects. All such levers have proved to be ideal whenever parts have to be clamped in a confined space or in a particular lever position. The centre insert is connected to the lever via serrations which can easily be disengaged. Pulling the lever, disengages the serrations and allowing it to be swivelled to the ideal clamping position. On releasing the lever the serrations automatically re-engage. Should a rotation of the lever through 360 degrees be impossible, the insert can easily be rotated by the slot in the screw (after disengaging the lever).
Adjustable hand levers GN 300 |
Adjustable hand lever GN 300.1-92-M12-GR
Code No. 300.1 |
|
|
|
