Levelling feet GN 343.3

Foot plastic / Threaded stud steel

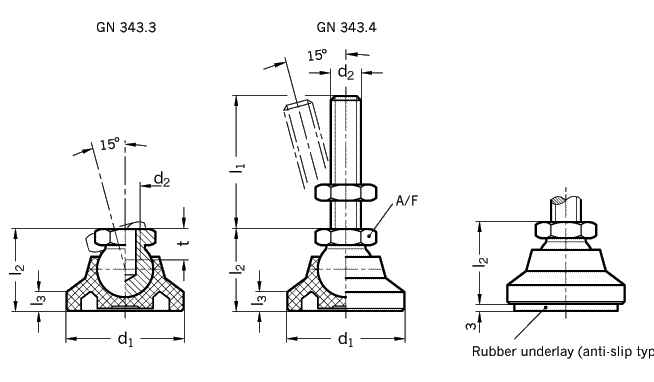

Levelling feet

GN 343.3
GN 343.4

Type A without rubber underlay

Type G with rubber underlay

d₁	d₂	l₁		l₂	l₃	A/F	t	Static Load [N]
							min.	for GN 343.4
								(See
								information)

25	M 8	40	63	19	4	13	9	5000
32	M10	50	80	23	5	16	10,5	7000
40	M12	63	100	26	6	18	11,5	10000

50	M12	63	100	28	7	18	11,5	10000
60	M16	80	125	36	8,5	24	16	14000

Specification

Information

How to order

Foot
Plastic
Thechnopolymer (Polyamide)
fibre glass reinforced

black, matt

restistant to oil, grease,
solutions and chemicals

Threaded stud
Steel
Tensile strenght 500 N/mm²
zinc plated, blue passivated

Hexagonal nut
ISO 4032
steel, zinc plated
blue passivated

Rubber underlay
NBR (PERBUNAN)
70 Shore hardness
black

GN 343.3
Levelling foot with female thread

GN 343.4
Levelling foot with threaded stud

Levelling feet GN 343.3 / GN 343.4 are capable of withstanding high static loads through the use of a high density plastic material coupled with a design which distributes the load over a larger area.

Exceeding the static values specified in the above table could lead to failure of the plastic component.

The above values have been arrived at by a series of load tests whereby a defined number of levelling feet were subjected to a vertical load over a defined period.

Depending on the application and load a safety margin has to be taken into account to ensure that the load is less than the permitted values given in the table. We cannot, however entertain any claims for damage caused by the use of these levelling feet.

Thrust pads GN 631
(plastic � 15, 18, 21, 25)

Levelling foot
GN 343.3-32-M10-A
Code No. 343.3
d₁ 32
d₂ M10
Type A

Levelling foot
GN 343.4-60-M16-80-G
Code No. 343.4
d₁ 60
d₂ M16
l₁ 80
Type G

Levelling feet GN 343.3 / GN 343.4 are supplied assembled. The rubber underlay is safely fixed in the foot.
