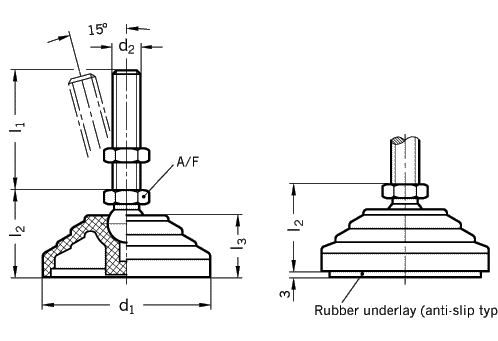

  		 Foot plastic / Threaded stud steel
Levelling feet
GN 344


Type A without nut, without rubber underlay

Type B with nut, without rubber underlay

 Type AG without nut, with rubber underlay

Type BG with nut, with rubber underlay
d1 d2 l1       l2 l3 A / F Ball-� Static
                    load [N]
                    (See
                    information)

60 M 10 43 68 98   32 23 14 14 14000
60 M 12 43 68 98   32 23 14 14 14000
60 M 16 68 108 148 168 32 23 16 14 14000

60 M 16 58 98 138 158 42 23 24 24 18000
60 M 20 98 138 158 198 42 23 24 24 18000
60 M 24 98 158 198   42 23 24 24 18000

80 M 10 43 68 98   32 23 14 14 16000
80 M 12 43 68 98   32 23 14 14 16000
80 M 16 68 108 148 168 32 23 16 14 16000

80 M 16 58 98 138 158 42 23 24 24 18000
80 M 20 98 138 158 198 42 23 24 24 18000
80 M 24 98 158 198   42 23 24 24 18000

100 M 16 58 98 138 158 42 23 24 24 25000
100 M 20 98 138 158 198 42 23 24 24 25000
100 M 24 98 158 198   42 23 24 24 25000

125 M 16 58 98 138 158 66 45 24 24 28000
125 M 20 98 138 158 198 66 45 24 24 28000
125 M 24 98 158 198 66 45 24 24 28000
Standard sheet GN 344 - Specification, Information, How to order
