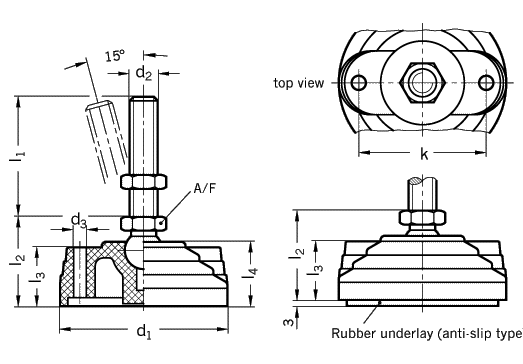

  		 Foot plastic / Threaded stud St. Steel
Levelling feet
GN 345.5


Type A without nut, without rubber underlay

Type B with nut, without rubber underlay

 Type AG without nut, with rubber underlay

Type BG with nut, with rubber underlay
d1 d2 l1       l2 l3 l4 A/F Ball-� Static
                      load [N]
                      (See
                      infor-
                      mation)

80 M 10 43 68 98   32 21 23 14 14 16000
80 M 12 43 68 98   32 21 23 14 14 16000
80 M 16 68 108 148 168 32 21 23 16 14 16000

80 M 16 58 98 138 158 42 21 23 24 24 18000
80 M 20 98 138 158 198 42 21 23 24 24 18000
80 M 24 98 158 198   42 21 23 24 24 18000

100 M 16 58 98 138 158 42 21 23 24 24 25000
100 M 20 98 138 158 198 42 21 23 24 24 25000
100 M 24 98 158 198   42 21 23 24 24 25000

125 M 16 58 98 138 158 66 22 45 24 24 28000
125 M 20 98 138 158 198 66 22 45 24 24 28000
125 M 24 98 158 198 66 22 45 24 24 28000
Standard sheet GN 345.5 - Specification, Information, How to order
