for profiled square tubes Insert bushes |
GN 348 |
| s1 | s2 | d | l1 | l2 | t | Tube dimensions | Static | ||
| outside | inside | Wall thickness |
load [N] (See information!) | ||||||
| 30 | 27 | M 10 | 33 | 6 | 20 | 30 | 27 | 1,2 | 5000 |
| M 12 | |||||||||
| M 16 | |||||||||
| 40 | 36 | M 10 | 43 | 8 | 20 | 40 | 36 | 2 | 5000 |
| M 12 | |||||||||
| M 16 | |||||||||
| 50 | 45 | M 16 | 55 | 10 | 30 | 50 | 45 | 2,5 | 5000 |
| Specification | Information | How to order |
| Plastic Techopolymer (Polyamide) glass fibre reinforced black, matt resistant to Bush brass |

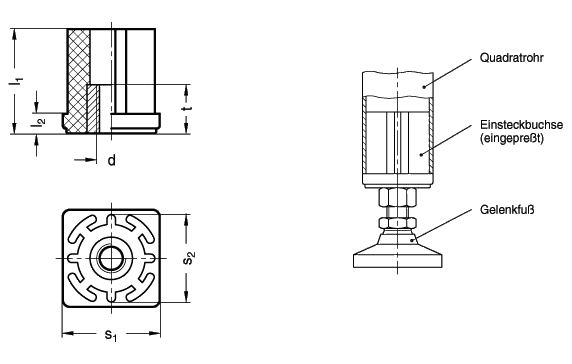

Insert bushes GN 348 offer the possibility of
mounting screws in profiled square tubes. A typical example is the
connection of a square tube with a levelling foot.
The figures given in the table for static loads are nominal values. Exceeding these values can lead to permanent deformation or breaking of the insert bush. The values were arrived at by a series of tests whereby a specific number of insert bushes were subjected for a limited time to a vertical static load. Dependent on the application and method of loading, a safety factor has to be taken into consideration so as to ensure that the permissible load is inferior to the values given in the table. As to possible damage when using these insert bushes in connection with levelling feet we cannot accept any liability whatsoever. |
Insert bush GN 348-30-27-M12 Code
No. 348 |
|
|
