Cabinet "U" handles |
GN 425 |

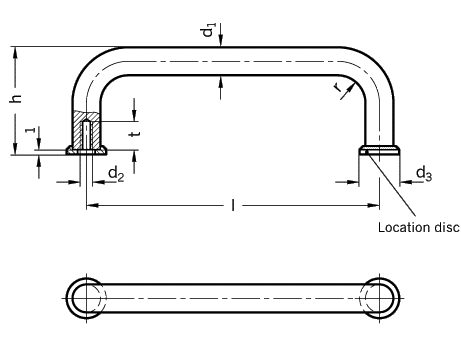

| d1 | Length l | d2 | d3 | h | r | t |
| 8 | 88 | M4 | 12 | 35 | 10 | 8 |
| 8 | 100 | M4 | 12 | 35 | 10 | 8 |
| 8 | 120 | M4 | 12 | 35 | 10 | 8 |
| 10 | 88 | M5 | 15 | 43 | 12 | 12 |
| 10 | 100 | M5 | 15 | 43 | 12 | 12 |
| 10 | 120 | M5 | 15 | 43 | 12 | 12 |
| 10 | 180 | M5 | 15 | 43 | 12 | 12 |
| 10 | 200 | M5 | 15 | 43 | 12 | 12 |
| 10 | 235 | M5 | 15 | 43 | 12 | 12 |
| Specification | Information | How to order |
| Steel Chrome plated (CR) blackened (BT)
Plastic coated
matt black (SW)
Location disc |
Cabinet "U" handles GN 425 are supplied with two zinc plated location discs. They guarantee a perfect location even with large holes in the cabinet. The discs are loosely enclosed. Lengths other than standard are available. |
Cabinet "U" handle GN 425-10-120-CR
Code No. 425 |
|
|
|
