without thread, for welding St. Steel - Cabinet U-handles |
GN 425.3 |

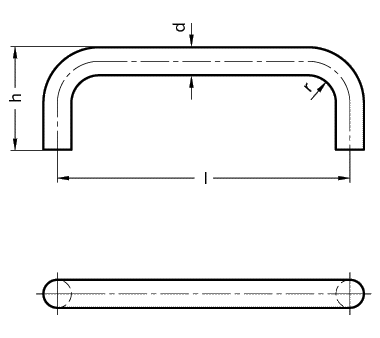

| d1 | Lenght l | h | r | ||
| 10 | 125 | 43 | 12 | ||
| 10 | 160 | 43 | 12 | ||
| 12 | 125 | 51 | 14 | ||
| 12 | 160 | 51 | 14 | ||
| 12 | 200 | 51 | 14 |
| Specification | Information | How to order |
| Stainless Steel (NI) German Standard No. 1.4301 matt, shot blasted |
These handles GN 425.3 can be produced in small quantities to lengths in accordance to customer requirements.
St. Steel - Cabinet U-handles GN 425
St. Steel - Cabinet U-handles GN 565.5 |
St. Steel- Cabinet U-handle GN 425.3-12-160-NI
Code No. 425.3 |
|
|
|
