St. Steel - Cabinet U-handles
GN 426.5

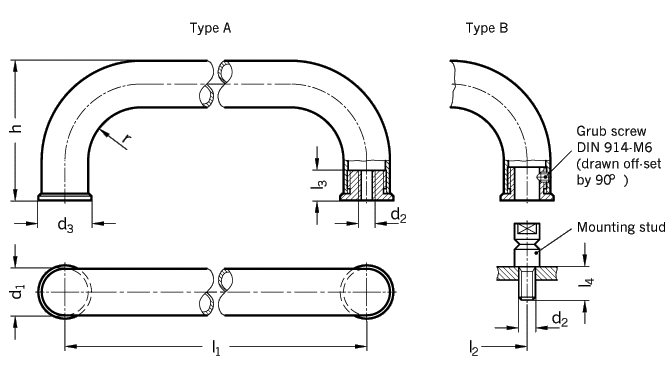

Type A mounting from the back (threaded blind bore) Type B mounting from the operator's side
d1 Length l1 +/-0,5 d2 d3 Length l2 +/- 0,3 l3 l4 h r
        Threaded
        bore for
        mounting stud

28 250 M 10 32 250 17 20 84 32
28 300 M 10 32 300 17 20 84 32
28 400 M 10 32 400 17 20 84 32
Specification Information How to order
Stainless Steel

Tube-� 28 x 2
German Standard No. 1.4301
matt, shot blasted

Bush, mounting stud
German Standard No. 1.4305

Grub screw DIN 914-M6-8-NI

St. Steel properties

 St. Steel - Cabinet U-handles GN 426.5 can be mounted from the back (type A) as well as from the operator's side (type B).

In this case the stud is first screwed in from the machine side and then the handle is pushed on and secured with the grub screw.

The mounting studs allow the handles to be assembled back to back to produce a double handle. These handles can be produced in small quantities to lengths in accordance to customer requirements.

Cabinet U-handles GN 426
(� 28 in Aluminium)

St. Steel - Cabinet U-handles GN 425
(� 8 and � 10)

St. Steel - Cabinet U-handles GN 565.5
(elliptical profile 20 x 13)

 St. Steel-
Cabinet U-handles
GN 426.5-28-400-A

Code No. 426.5
d1 28
l1 400
Type A
