Cabinet "U" handles |
GN 427 |

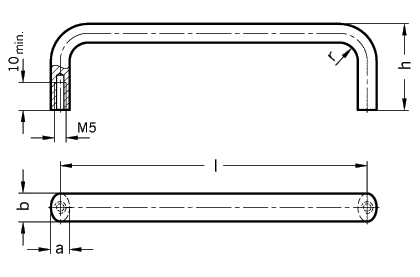

| b | Length l | a | h | r |
| 12 | 88 | 8 | 40 | 8 |
| 12 | 100 | 8 | 40 | 8 |
| 12 | 120 | 8 | 40 | 8 |
| 12 | 180 | 8 | 40 | 8 |
| 12 | 200 | 8 | 40 | 8 |
| Specification | Information | How to order |
| Aluminum anodized (EL) natural colour |
Cabinet "U" handles GN 427 are made from a profiled aluminum extrusion. Due to the manufacturing process (bending) special lengths can be produced for relatively small quantity orders. |
Cabinet "U" handle GN 427-12-120-EL
Code No. 427 |
|
|
|
