Revolving handles
GN 598

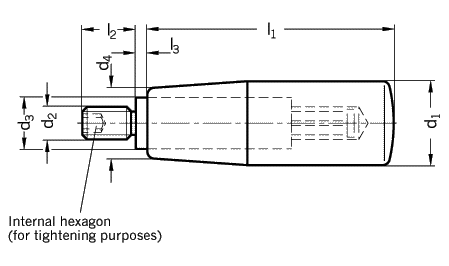

d1 d2     d3 d4 l1 l2 l3
  metric   UNC

14 M 6 � � 8 11 28 10 0,5
18 M 6 � 1/4x20 10 15 40 12 2,5
21 M 6 M 8 1/4x20 10 17 50 13 2,5

22 M 6 M 8 � 10 18 56 13 2,5
23 M 8 M 10 5/16x18 13 19 65 14 2,5
26 M 8 M 10 3/8x16 13 21 80 16 2,5

28 M 10 � � 13 22 90 16 2,5
31 M 12 � 1/2x13 14 25 102 20 2,5
Specification Information How to order
Plastic (KU)
Duroplast (Phenolic)
only sizes 18, 21, 22, 23, 26, 28, 31
black shiny finish

Plastic (KT)
Technopolymer (Polyamide)
only sizes 14, 18, 21, 22, 23, 26, 28
black matt finish

Steel (ST)
only sizes 18, 21, 23, 26, 28, 31
Plastic coated
matt black, textured finish

Spindle steel
zinc plated

 Revolving handles GN 598 are noted for their "modern design and they blend in well with the "rectangular shaped rim handwheels.

Steel handles are mainly used on safety "handwheels to increase imbalance and thus avoid free wheeling.

 Revolving handle
GN 598-KU-21-M8

Code No. 598
Material KU
d1 21
d2 M8
