St. Steel - Cam action indexing plungers
GN 612

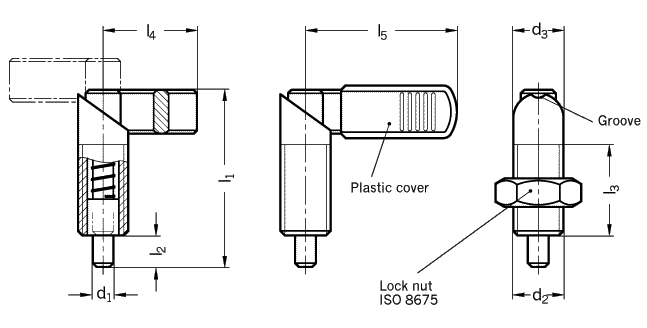

Type A without lock nut, without plastic cover Type AK with lock nut, without plastic cover
Type B without lock nut, with plastic cover Type BK with lock nut, with plastic cover
d1 d2 d3 l1 l2 l3 +1,5 l4 l5 Spring load N ~
Plunger               initial end
 -0,02
 -0,04
Bore H7

6 M16 x 1,5 16 56 10 30 32 42 12 32

8 M16 x 1,5 16 56 10 30 32 42 12 32
  M20 x 1,5 20 69 12 36 37 52 21 58

10 M16 x 1,5 16 56 10 30 32 42 12 32
  M20 x 1,5 20 69 12 36 37 52 21 58

12 M20 x 1,5 20 69 12 36 37 52 21 58
Specification Information How to order
Stainless Steel (NI)
German Standard
No. 1.4305 / 1.4404

Plunger
ground and
chemically nickel plated

Spring
Stainless Steel
German Standard No. 1.4310

Plastic cover
Technopolymer (Polyamide)
black, matt

ISO-fits

St. Steel - properties

 St. Steel - Cam action indexing plungers GN 612 are used in cases where the locking pin must not protrude all the time. By rotating the lock through 180� the locking pin withdraws itself.

A notch is provided in either position to prevent the lock from rotating.

St. Steel - Indexing plungers GN 617.1
(with rest position)

 St. Steel - Cam action
indexing plunger
GN 612-12-M20x1,5-AK-NI

Code No. 612
d1 12
d2 M20x 1,5
Type AK
St. Steel NI
