Indexing plungers
GN 618

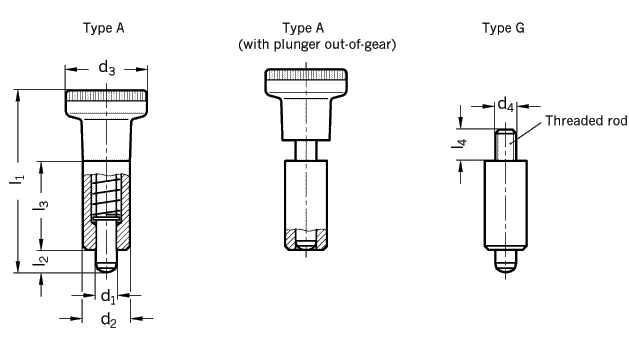

Type A with knob Type G with threaded rod
d1 d2 h9 d3 d4 l1 ~ l2 l3 l4 Spring load N~
Plunger -0,02
 -0,04
Bore H7		         min.     initial end

5 12 21 M 5 45 5 22 6 7 16
6 14 25 M 6 54,5 6 26 10 6,5 15
8 18 31 M 8 69 8 34 12 12 31
Specification Information How to order
Steel
welding quality

blackened

Plunger
hardened and ground

Knob
Plastic (Technopolymer)
black matt finish
not removable

ISO-fits

 Indexing plungers GN 618 "without thread are for application where welding or resin bonding (Loctite) is favoured.

Type G with threaded plunger end are for applications where a special knob to customers' own de-sign is required or for such cases where the spindle is linked direct to an operating mechanism.

Indexing plungers GN 613
(with thread, without head)

Indexing plungers GN 617
(with thread)

Indexing plungers GN 617.1
(with thread and rest position)

 Indexing plunger
GN 618-8-A

Code No. 618
d1 8
Type A
