for increased clamping force Star knobs |
GN 6335.9 |

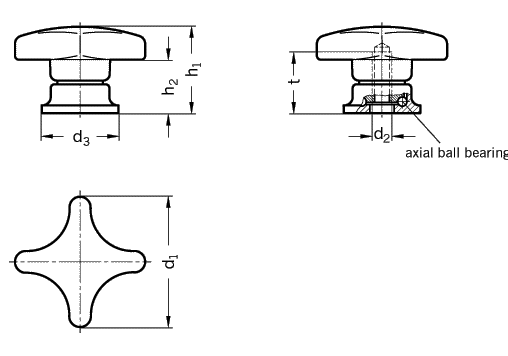

| d1 | d2 | d3 | h1 | h2 | t |
| min. | |||||
| 40 | M 6 | 24 | 27 | 15,5 | 14,5 |
| 50 | M 8 | 25 | 34 | 22,5 | 15 |
| 63 | M 10 | 30 | 41 | 26,5 | 19 |
| 80 | M 12 | 35 | 53 | 33,5 | 28,5 |
| Specification | Information | How to order |
| Plastic Technopolymer (Polyamide) shock proof black, matt bushes nitrided blackened |
Star knobs GN 6335.9 have a clamping contact area which is
connected to the knob via an axial ball bearing.
This has led to the following advantages: Double clamping force through vastly reduced friction. There is no movement on the contact area between star knob and component which greatly reduces any marking on the clamping area. In addition a reduced creep factor has been achieved by the indreased preload. |
Star knob GN 6335.9-50-M8 Code
No. 6335.9 |
|
|
