Tubular handles
GN 666

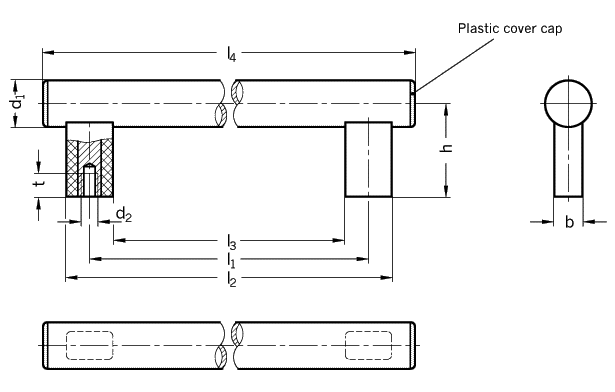

d1 Length l1 b d2 h l2 l3 l4 t

30 200 18 M 8 60 230 170 265 15
30 250 18 M 8 60 280 220 315 15
30 300 18 M 8 60 330 270 365 15

30 400 18 M 8 60 430 370 465 15
30 500 18 M 8 60 530 470 565 15
30 600 18 M 8 60 630 570 665 15
Specification Information How to order
Tube
Aluminum
30 mm x 1,5 mm
wall thickness

Plastic coated
matt black (SW)
RAL 9005  textured finish

anodized (EL) natural colour

Handle shanks
Plastic
Technopolymer (Polyamid)
reinforced
matt black

Cover caps
Plastic, matt black

threaded bushings
Steel, zinc plated

 Tubular handles GN 666 offer an even more extensive size range for virtually any application that requires mounting from the bottom side.

 Tubular handle
GN 666-30-500-EL

Code No. 666
d1 30
l1 500
Finish EL
