Angled ball joints		 Extract from
DIN 71802

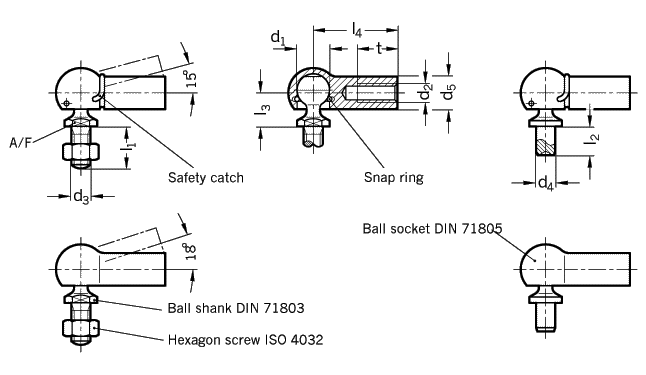

Type CS with threaded ball shank with safety catch � Type BS with rivet ball shank with safety catch
Type C with threaded ball shank without safety catch � Type B with rivet ball shank without safety catch
d1 d2   d3 d4 d5 l1 l2   l3 l4 t A/F min.
H9/h9   Left hand   h11             min.   Seperating
    thread                     force[N]

8 M 5 M 5L M 5 5 8 10 4 7,5 9 22 10,5 7 30
10 M 6 M 6L M 6 6 10 12,5 4,5 8 11 25 11,5 8 40
13 M 8 M 8L M 8 8 13 16,5 5 10 13 30 14 11 60

16 M 10 M 10L M 10 10 16 20 6 13 16 35 15,5 13 80
16 M 12 M 12L M 12 12 16 20 6 13 16 35 15,5 13 80
19 M 14F = M 14FL = M 14x1,5 14 22 28 12 18 20 45 21,5 16 100
M 14x1,5 M 14x1,5L
Specification Information How to order
Steel

Ball hardened
Ball lubricated

zinc plated, blue passivated

 Angled ball joints DIN 71802 consist of a ball socket DIN 71805 and a ball shank DIN 71803.

The angle of rotation for the type with safety catch (types CS, BS) is 15°, without safety catch (types C, B) is 18°.

For assembly the ball is pushed through the circlip which acts as a retainer. Should the retaining force between ball and socket not be sufficient (see table above) this can be increased by adding a safety catch, which can easily be fitted.

To protect the ball point , a dust cap GN 710 can be added.

Ball joints with reduced resistance (Ball socket with play) are available on request.

Dust caps GN 710

 Angled ball joints
with threaded ball shank
DIN 71802-19-M14FL-CS

Code No. 71802
d1 19
d2 M14FL
Type CS

Angled ball joints
with rivet ball shank
DIN 71802-13-M8-10-B

Code No. 71802
d1 13
d2 M8
l2 10
Type B

Dust caps GN 710 have to be ordered separately.

The hexagon nut is part of the angled ball joints.
