Cabinet 'U' handles

GN 728

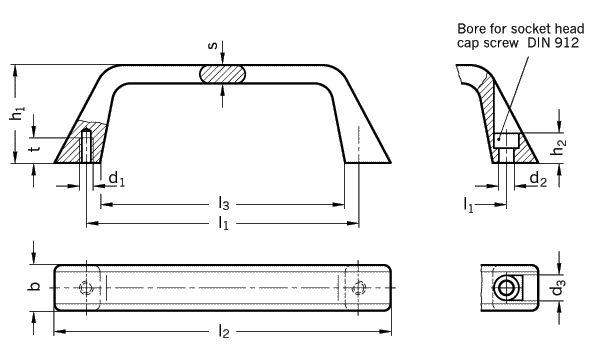

Type B mounting from the operator's side with socket head cap screws

l1	b	d1	d2	d3	h1	h2	l2	l3	s	t
										min.
120	22,5	M 6	6,4	11	43	13	147	108	8	10
180	27	M 8	8,4	13,5	48	16	215	166	10	12

Specification

Information

How to order

Aluminum Pressure die casting Plastic coated black (SW) RAL 9005 textured finish blank (BL) tumbled

Cabinet 'U' handles GN 728 are a low cost variant in metal. The installation can be carried out from the back (type A) as well as from the operator's side (type B). The hole centers dimension is identical on all variants. As a result they can be mounted in pairs opposite each other.

Cabinet 'U' handle GN 728-120-A-SW Code No. 728 l1 120 Type A Finish SW
