  		 with adjustable spring loaded clamping pad
Clamping bolts
GN 804

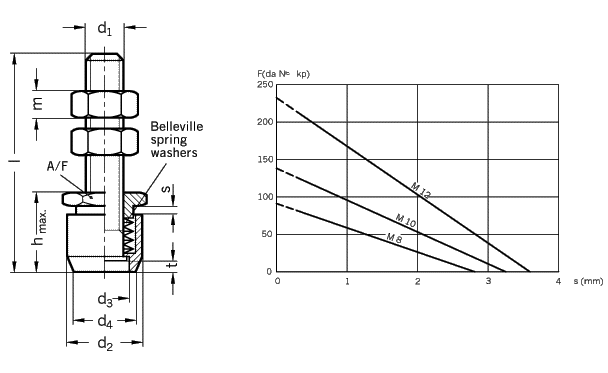

d1 Length l ±1 d2 d3 d4 h
max.		 m A/F t

M 8 70 18 10 15 22,5 6,8 19 3,5
M 10 85 24 12 18 27,5 8,4 24 4
M 12 106 28 15 21 32,5 10,8 27 4,5
Specification Information How to order
Bolt
Steel, tensile strength 500 N/mm2
zinc plated, blue passivated

Hexagon nuts
ISO 4032
Steel
zinc plated, blue passivated

Clamping pad
nitrided, blackened

 In order to pass the the dead centre point and / or compensate for work piece tolerances when using hand operated toggle clamps, an elastic clamping pad such as GN 708 can be used.

Clamping bolts GN 804 fitted with Belleville spring washers do not only help to overcome workpiece tolerances but they also allow presetting of the required clamping force.

This adjustment can be made with the hexagon nut (A/F). The setting nut stroke is the distance by which the Belleville washers can be preloaded as shown on the above graph to give the required clamping force.

Furthermore the pressure pad is movable.

 Clamping bolt
GN 804-M10-85

Code No. 804
d1 M10
Length l 85

The two hexagon nuts are included parts of the order.
