Flat adjustable
tension levers

GN 125

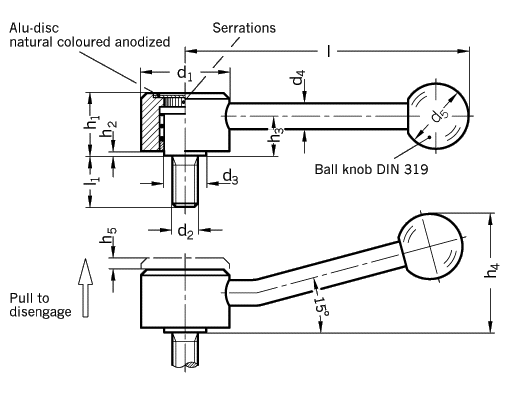

Type D straight lever Type E angled lever
d1 d2 Length l1 d3 d4 h1 h2 h3 h4 h5
  metric / UNC

  M 8 - 12 16 20 25 32 40 50 63
32 M 10 - 20 25 32 40 50 63 80   13,5 8 20,5 1,5 12,5 36 4
  5/1618 3/816 16 20 25 32 45 50 63

36 M 10 M 12 16 20 25 32 40 50 63 80 16 10 24,5 2 15 45 4,5
  3/816 - 16 20 25 32 40 45 50 63

40 M 10 M 12 16 20 25 32 40 50 63 80 19 12 26,5 2 16 50 4,5
  3/816 1/213 25 32 35 40 45 63

45 M 12 M 16 25 32 40 50 63 80     23 12 31,5 2 20 60 5
1/213 5/811 40 55 63
Specification Information How to order
Steel

blackened

Ball knob DIN 319
Plastic, black

Alu-disc
natural coloured anodized

The overall height is reduced to a minimum. The alu-disc gives these levers a good appearance.

As all other adjustable levers, they are ideal when-ever parts have to be clamped in a confined space, or a particular lever position is required. The threaded insert is connected with the hub via serrations which can be disengaged.

Pulling the lever, disengages the serrations and the lever can be swivelled to the ideal clamping position. On releasing the lever it will automatically re-engage.

Flat adjustable
tension lever
GN 125-32-M8-40-D

Code No. 125
d1 32
d2 M8
l1 40
Type D
