PUSH to disengage Adjustable clamping levers |
GN 99.2 |

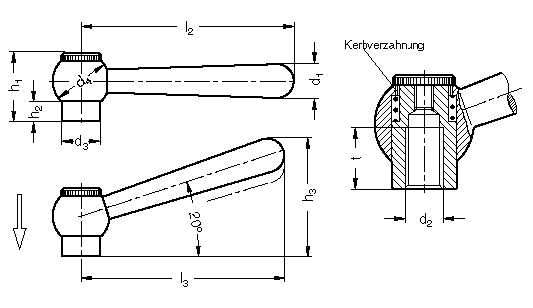

| Type M straight lever with female thread | Type N angled lever with female thread |
| d1 | d2 | d3 | d4 | h1 | h2 | h3 | l2 | l3 | t | |
| Thread | min. | |||||||||
| 10 | M 6 | M 8 | 13,5 | 20 | 25 | 8 | 39,5 | 63 | 60 | 12 |
| 13 | M 8 | M 10 | 16 | 25 | 29 | 8 | 49,5 | 80 | 76 | 15 |
| 16 | M 10 | M 12 | 19 | 28 | 33,5 | 10,5 | 60,5 | 100 | 95 | 18 |
| Specification | Information | How to order |
| Steel Tensile strength 500 N/mm2 blackened |
Adjustable clamping levers GN 99.2 are known for
their small dimensions.
They are for use in applications where either the clamping range is limited or where a specific lever position is required. The serrated bore in the spherical hub is fitted with a threaded bolt insert which engages in the hub with its own serrations. By depressing the clamping lever the serrations are disengaged freeing it for re-positioning in the most convenient position. When releasing the lever the serrations will re-engage automatically. Should a rotation of 3600 not be possible the insert can be slightly screwed in (after the lever has been disengaged) by means of the slotted knurled screw. Clamping leversDIN 99 |
Adjustable clamping lever GN 99.2-16-M12-N Code
No. 99.2 |
|
|
