Pressed steel handwheels

GN 227

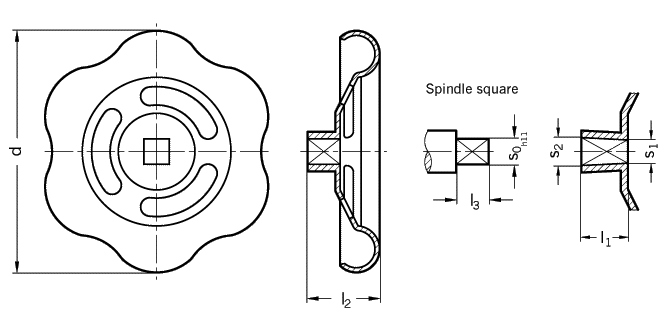

d Square (V)         l1 ±0,5 l2 l3-1 No.
  s0 s1-0,1 s2-0,1 s0 s1-0,1 s2-0,1       of
                    spokes

50 V 6 5,8 6,15 V 7 6,8 7,15 9 15,5 8 3
60 V 6 5,8 6,15 V 7 6,8 7,15 9 / 10 16,5 / 17,5 8 / 9 3
70 V 7 6,8 7,15 V 8 7,8 8,15 10 19 9 3

80 V 8 7,8 8,15 V 9 9 9,15 11 / 12 20 10 / 11 3
90 V 9 8,8 9,15 12 24 11 3
100 V 9 9 9,2 V 10 9,8 10,2 13 24 12 4

120 V 11 11 11,2 V 12 12 12,25 14 / 16 31 / 32,5 13 / 14 4
140 V 12 12 12,25 16 32,5 14 4
160 V 14 14 14,25 20 37 18 4
Specification Information How to order
Pressed steel

Plastic coated
black (SW)
RAL 9005 shiny
red (RT)
RAL 3000

uncoated (RH)

Handwheels GN 227 have been specially developed for valves and they offer definite advantages:

They consist of a single unwelded piece of pressed sheet metal manufactured by a special process to give a re-inforced hub. They offer high mechanical strength and are not affected by shocks and knocks.

They are resistant to temperature and fire and not weakened by any ageing process.

The slightly tapered square hole allows easy installation and firm seating on a spindle.

They are of an attractive design and low cost.

Pressed steel
handwheel
GN 227-60-V7-SW

Code No. 227
d 60
s V7
Finish SW
