Pressed steel handwheels |
GN 227.1 |
| Bore Code: | |
| without keyway = B + Bore dia. | |
| with keyway = K + Bore dia. | |
| with square = V + Square dia. |

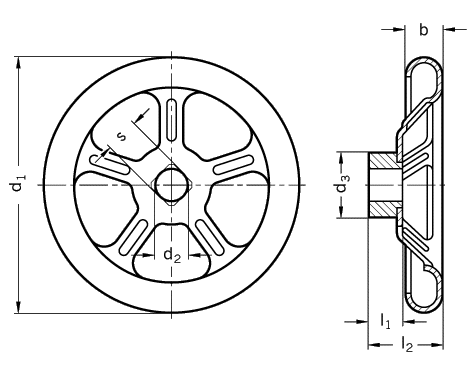

| d1 | d2 H9 | s H11 | b | d3 | l1 | l2 | No. of | Thickness |
| Bore (B) | Square (V) | Spokes | of pressed | |||||
| steel | ||||||||
| 125 | 11 | V 11 | 18 | 30 | 18 | 29 | 3 | 1,5 |
| 160 | 12 | V 12 | 22 | 30 | 20 | 37 | 4 | 1,5 |
| 200 | 14 | V 14 | 22 | 40 | 24 | 46 | 4 | 2,5 |
| 250 | 17 | V 17 | 30 | 45 | 28 | 52 | 5 | 2,5 |
| 315 | 19 | V 19 | 35 | 55 | 33 | 64 | 5 | 2,5 |
| 400 | 24 | V 24 | 40 | 65 | 38 | 82 | 5 | 3 |
| Specification | Information | How to order |
| Pressed steel
Plastic coated Hub welded KeywayDIN 6885/1 Square boreDIN 79 Cross holesGN 110 |
The hub lengths of the pressed steel handwheels GN 227.1 conform to DIN 950. Pressed steel handwheels GN 227.1 are renowned for their high mechanical strength. They are not affected by shock and knocks. They are of an attractive design and shape at reasonable cost. |
Pressed steel handwheel GN 227.1-200-V14-SW
Code No. 227.1 |
|
|
|
