St. Steel-Handwheels

GN 227.2


Bore Code:
without keyway = B + Bore dia.
with keyway = K + Bore dia. Type A without handpiece
with square = V + Square dia. Type D with revolving handpiece

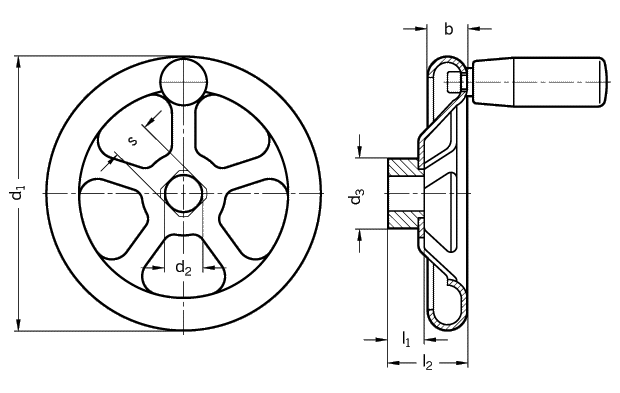

d1 d2 H9 s H11 b d3 l1 l2  No. of
  Bore (B) Square (V)         Handpiece spokes

160 B 12 V 12 22 30 20 39 26 4
200 B 14 V 14 22 40 24 44 26 4
250 B 17 V 17 30 45 28 52 28 5
Specification Information How to order
Stainless Steel
German Standard No. 1.4301
pressed

Hub welded

matt shot-blasted

Revolving handles GN 598.1
Plastic (Duroplast), black
Spindle St. Steel
German Standard No. 1.4305

KeywayDIN 6885/1

Square boreDIN 79

Cross holesGN 110

The hub lengths of the pressed St. Steel "handwheels GN 227.2 conform to "DIN 950.

St. Steel handwheels GN 227.2 are renowned for their high mechanical strength. They are not affected by shock and knocks. They are of an attractive design and shape at reasonable cost.

St. Steel-Handwheel
GN 227.2-200-B14-A

Code No. 227.2
d1 200
Bore code B
d2 (s) 14
Type A
