for universal joints
Gaiters

GN 808.1

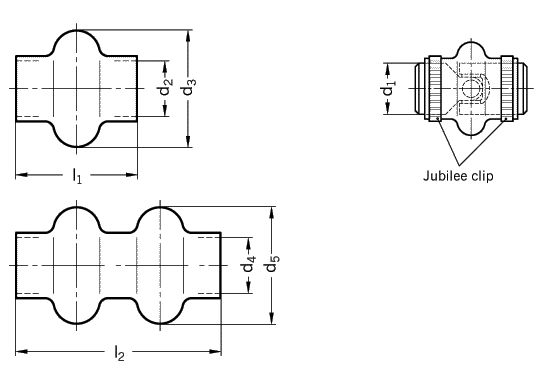

Type E for single joints Type D for double joints
d1

Joint -�

d2
Type E
d3
Type E
d4
Type D
d5
Type D
l1
Type E
l2
Type D

16 15 28 16 35 34 55
22 20,5 40 20 36 45 65
25 24,5 48 24 44 50 70

28 27,5 52 28 51 56 80
32 30,5 56 32 62 65 90
36 35,5 66 72

42 40 75 40 73 82 120
45 45 84 95
50 50 92 50 90 108 155

58 56 100 122
Specification Information How to order
Type E
Rubber CR(NEOPRENE)
black

Type D
Elastomer
Palstic, smooth PVC
black

The gaiter GN  808.1 protects the joint from dust.

In addition they can be filled with grease which gives permanent lubrication to universal joints fitted with friction bearings.

The gaiters are supplied with two jubilee clips.

Gaiter
GN 808.1-25-E

Code No. 808.1
d1 25
Type E

Two jubilee clips are part of each gaiter.
