Pull to disengage Adjustable hand levers |
GN 101 |

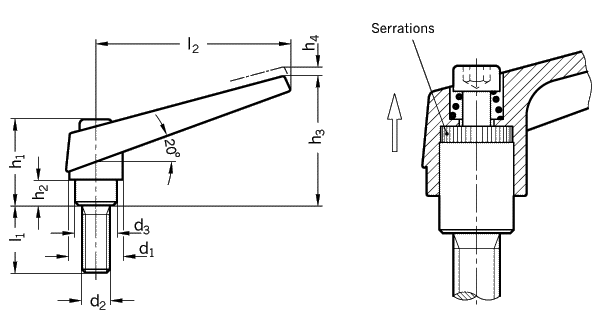

| d1 | d2 | Length l1 | d3 | h1 | h2 | h3 ~ | h4 | l2 | ||||||||
| metric / UNC | Lift to | |||||||||||||||
| dis- | ||||||||||||||||
| engage | ||||||||||||||||
| 14 | M 5 | M 6 | 12 | 16 | 20 | 25 | 32 | 40 | 50 | 10 | 25 | 4,5 | 35 | 3,5 | 45 | |
| 10x32 | 1/4x 20 | 10 | 12 | 16 | 20 | 25 | 32 | 40 | ||||||||
| 18 | M 6 | M 8 | 16 | 20 | 25 | 32 | 40 | 50 | 63 | 13,5 | 31 | 6,5 | 45 | 4 | 62 | |
| 5/16x18 | 3/8x16 | 16 | 20 | 25 | 32 | 40 | 45 | 50 | 63 | |||||||
| 22 | M 10 | 16 | 20 | 25 | 32 | 40 | 60 | 63 | 80 | 16 | 36 | 8 | 52 | 4 | 74 | |
| 3/8x16 | 16 | 20 | 25 | 32 | 40 | 45 | 50 | 63 | ||||||||
| 25 | M 12 | 25 | 32 | 40 | 50 | 63 | 80 | 19 | 43 | 11 | 63 | 4 | 89 | |||
| 3/8x16 | 1/2x13 | 25 | 32 | 40 | 45 | 50 | 63 | |||||||||
| 30 | M 16 | 32 | 40 | 50 | 63 | 80 | 23 | 50,5 | 12 | 76 | 5 | 108 | ||||
| 1/2x13 | 5/8x11 | 40 | 55 | 63 | ||||||||||||
| Specification | Information | How to order |
| Handle Zinc die casting
Plastic coated
matt black (SW)
Thread insert and screw
Adjustable hand levers with Stainless Steel (German Standard 1.4305) internal parts available under Code No. GN 101.1. |
Adjustable hand levers GN 101 are the result of modern industrial design. All such levers have proved to be ideal whenever parts have to be clamped in a confined space or in a particular lever position. The centre insert is connected to the lever via serrations which can easily be disengaged. Pulling the lever disengages serrations and allowing to be swivelled to the ideal clamping position. On releasing the lever the serrations automatically re-engage. Should a rotation of the lever through 360 degrees be impossible, the insert can easily be rotated by the slot in the screw (after disengaging the lever).
Adjustable hand levers GN 300
Adjustable hand levers GN 300.1 |
Adjustable hand lever GN 101-22-M10-40-SW
Code No. 101 |
| |
|
