Cross holes

GN 110


d1 H7/s H11   d2 H11 d3 l -0,1 l -0,1
        Standard type for DIN 950 only

8 9 3 M5 5,5 4,5
10 11 3 M5 5,5 4,5
12 13 4 M6 6,5 5,5

14 15 4 M6 6,5 5,5
16 17 5 M6 8 7
18 19 5 M6 8 7

20 21 5 M6 8 7
22 23 6 M6 10 9
24 25 6 M6 10 9

26 27 6 M6 10 9
Information How to order

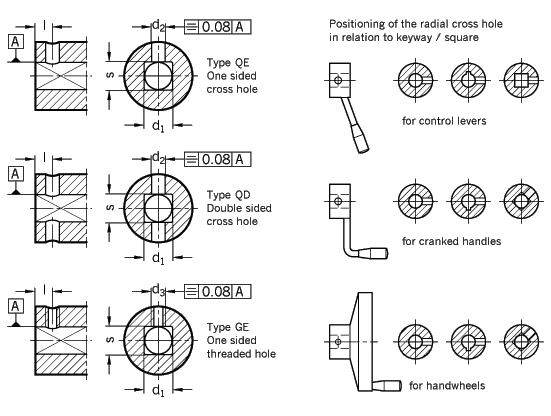

The connection between the operating devices and the axle consists very often of a cross pin or a grub screw.

As a result the user is faced with relatively high costs since cross holes on operating devices are in general not readily available.

Components with cross holes to GN 110 are not only offered at very competitive prices but they also save the manufacturer unnecessary drawing work. The geometrical form of some of the operating devices, however, does not lend itself to modification to this particular GN standard.

The radial positioning of the cross holes is only specified as per above three specifications of product groups (control levers, cranked handles, handwheels). For all other operating devices and the product group 2.7 it can can be arranged any way.

The pin hole d2 H11 is drilled to suit drive spring pins.

(Handwheel
DIN 950-GG-160-B14-A)
with cross hole

GN 110-QE

Code No. 110
Type QE
