Flat adjustable
tension levers

GN 125

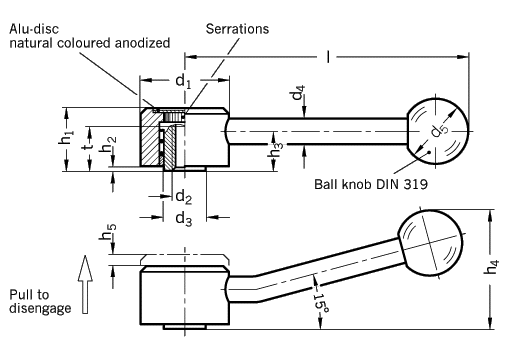

Type D straight lever Type E angled lever
d1 d2 d3 d4 d5 h1 h2 h3 h4 h5 l t
  metric / UNC                   min.

32 M 6 M 8 13,5 8 20 20,5 1,5 12,5 36 4 100 11
  1/4 x 20 5/16 x 18

36 M 8 M 10 16 10 25 24,5 2 15 45 4,5 120 14
  3/8 x 16 5/16 x 18

40 M 10 M 12 19 12 30 26,5 2 16 50 4,5 130 17
  3/8 x 16 1/2 x 13

45 M 12 M 16 23 12 32 31,5 2 20 60 5 145 23
1/2 x 13 5/8 x 11
Specification Information How to order
Steel

blackened

Ball knob DIN 319
Plastic, black

Alu-disc
natural coloured anodized

The overall height is reduced to a minimum. The alu-disc gives these levers a good appearance.

As all other adjustable levers, they are ideal when-ever parts have to be clamped in a confined space, or a particular lever position is required. The threaded insert is connected with the hub via serrations which can be disengaged.

Pulling the lever, disengages the serrations and the lever can be swivelled to the ideal clamping "position. On releasing the lever it will automatically re-engage.

Special GN 125 flat adjustable tension levers can be supplied with threaded through bore.

Flat adjustable
tension lever
GN 125-32-M8-D

Code No. 125
d1 32
d2 M8
Type D
