Split hubs
GN 150

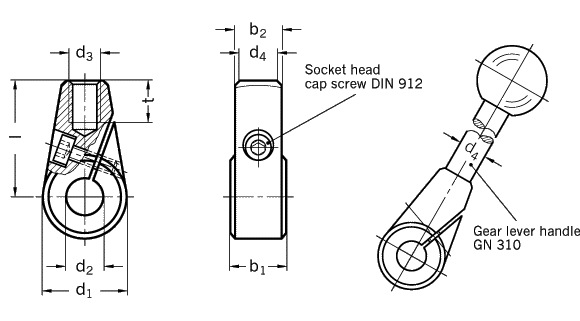

d1 d2 b1 ±0,2 b2 d3 d4 l t
  Bore (B)       Gear lever �   min.

24 B 10 B 12 15,5 13 M 8 10 36 11
28 B 12 B 14 17,5 15 M 10 12 41 14
32 B 14 B 16 19,5 17 M 12 14 45 16
Specification Information How to order
Sintered steel

blackened

 Split hubs GN 150 are distinguished by the method of simple clamping to any shaft. This can be achieved without prior machining of the shaft, eliminating clamping parts and assembly work.

A further advantage is the positioning of the lever arm to any required position.

The shaft tolerance should be within h11; to transmit higher torques the hub can be supplied with a keyway.

Gear lever handlesGN 310

 Split hub
GN 150-28-B14

Code No. 150
d1 28
d2 B14

Gear lever handles GN 310have to be ordered separately.
