  		 with 4 arms
Turret levers
GN 213

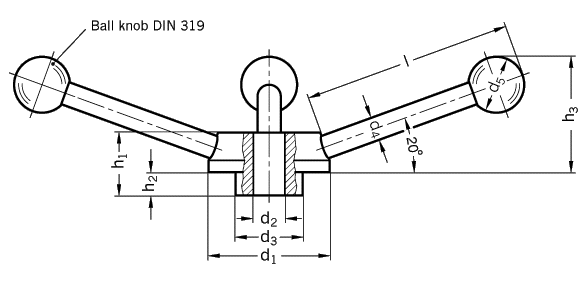

d1 d2 H7 d3 d4 d5 h1 h2 l
  Bore (B)

50 B 12 28 8 20 26 9 82
55 B 14 30 10 25 28 10 96
60 B 15 32 10 25 30 11 96

65 B 16 35 12 30 32 12 110
72 B 18 40 12 32 36 14 124
80 B 20 44 14 35 40 16 138

100 B 24 54 16 40 52 24 170
Specification Information How to order
Steel

fine turned
blackened

Ball knob DIN 319
Plastic, black

 Turret levers can also be supplied as standard with:

SquareDIN 79

KeywayDIN 6885

 Turret lever
GN 213-65-B16

Code No. 213
d1 65
d2 B16
