Adjustable St. Steel - Tension levers |
GN 212.5 |

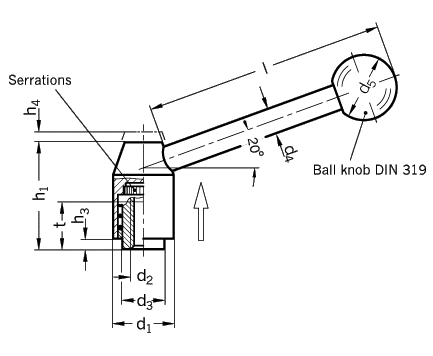

| Type E angled lever |
| d1 | d2 | d3 | d4 | d5 | h1 | h3 | h4 | l | t | |
| metric / UNC | min. | |||||||||
| 21 | M 6 | M 8 | 13,5 | 8 | 20 | 33,5 | 1 | 4 | 70 | 10 |
| 1/4 x 20 | 5/16 x 18 | |||||||||
| 24 | M 8 | M 10 | 16 | 10 | 25 | 40 | 2,5 | 4,5 | 96 | 14 |
| 3/8 x 16 | 5/16 x 18 | |||||||||
| 28 | M 10 | M 12 | 19 | 12 | 30 | 48,5 | 4,5 | 4,5 | 110 | 17 |
| 3/8 x 16 | 1/2 x 13 | |||||||||
| Specification | Information | How to order |
| Stainless Steel German Standard No. 1.4305 matt shot-blasted
Ball knob DIN 319 |
Adjustable tension levers GN 212.5 have proved to be ideal whenever parts have to be clamped in a confined space or a particular lever position is required. The threaded insert is connected with the hub via serrations which can be disengaged. Pulling the lever, disengages the serrations and allowing it to be swivelled to the ideal clamping position. On releasing the lever it will automatically re-engage.
Adjustable tension levers GN 212.3
St. Steel - Tension levers GN 212 |
Adjustable St. Steel-Tension lever GN 212.5-28-M12-E
Code No. 212.5 |
|
|
|
