for knurled handwheels GN 226
Cover discs

GN 226.1

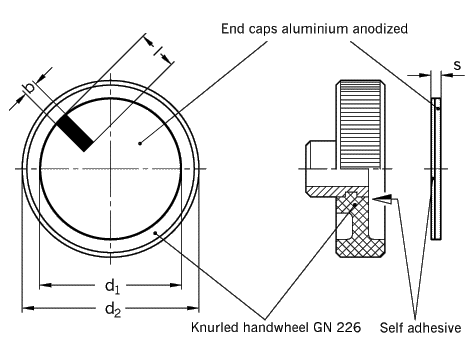

Type A with black symbol Type B plain
d1 d2 b l s
  Handwheel

39 50 4 10 0,4
52 63 5 12 0,4
67 80 6 15 0,4
Specification Information How to order
Aluminum

anodized
matt natural colour

Symbol black

self-adhesive

Cover discs GN 226.1 not only improve the appearance of the knurled handwheels GN 226 , but also widen the range of applications.

Apart from the standard symbol, diagrams and or other symbols can be printed.

Cover discs and knurled handwheels are supplied separately.

Cover disc
GN 226.1-52-A

Code No. 226.1
d1 52
Type A
