Knurled handwheels |
GN 226 |

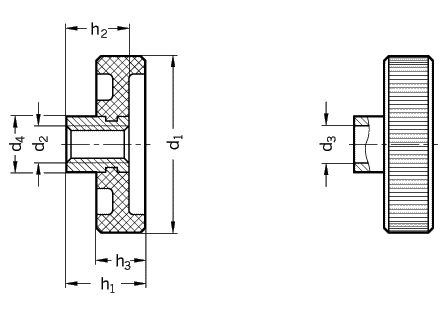

| d1 | d2 | d3 H7 | d4 | h1 | h2 | h3 | ||
| Thread | Bore (B) | |||||||
| 50 | M 8 | M 10 | B 8 | B 10 | 18 | 25 | 20 | 15 |
| 63 | M 10 | M 12 | B 10 | B 12 | 20 | 30 | 24 | 18 |
| 80 | - | M 16 | B 12 | B 16 | 25 | 36 | 29 | 22 |
| Specification | Information | How to order |
| Plastic (KU) Duroplast (Phenolic) black
Hub steel
Plastic (KT) black, matt
Hub steel Cross holesGN 110 |
Knurled handwheels GN 226 are mainly used instead of star and hand knobs for light adjusting or clamping applications. Cover discs GN 226.1 widen the range of applications for these knurled handwheels. |
Knurled handwheel GN 226-KT-50-M10
Code No. 226 |
|
|
|
