St. Steel - Gear lever handles |
GN 310 |

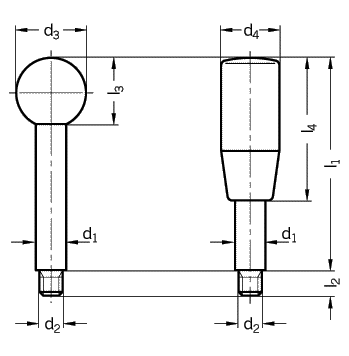

| Type A Ball knob DIN 319 | Type E Cylindrical knob GN 519 |
| d1 | Length l1 | d2 | d3 | d4 | l2 | l3 | l4 | ||
| A | E | A | E | ||||||
| 8 | 63 | 80 | 100 | M 6 | 20 | 18 | 9 | 18 | 40 |
| 10 | 80 | 100 | 125 | M 8 | 25 | 21 | 11 | 22,5 | 50 |
| 12 | 100 | 125 | 160 | M 10 | 32 | 23 | 14 | 29 | 65 |
| 14 | 125 | 160 | 200 | M 12 | 35 | 26 | 16 | 32,5 | 80 |
| Specification | How to order | |
| Shafts Stainless Steel (NI) German standard No. 1.4305 matt shot-blasted
Knobs |
St. Steel - Gear lever handle GN 310-12-100-A-NI
Code No. 310 |
|
|
|
