Ratchet spanner |
GN 317 |

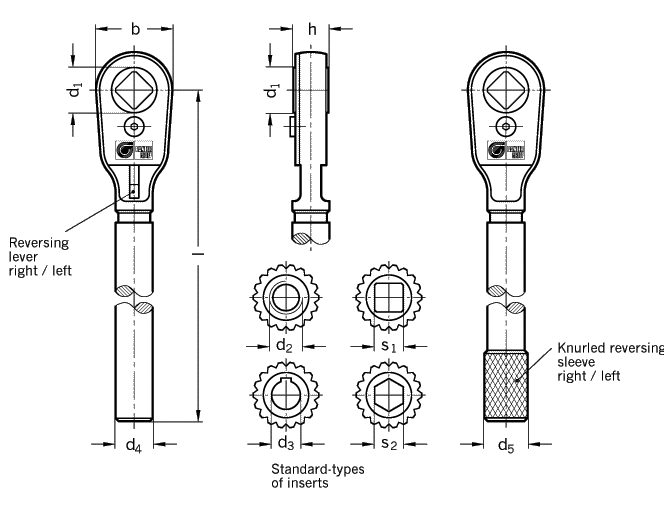

| Type A | reversal right / left, lever operated |
Type B | reversal right / left, knurled sleeve operated |
| d1 | d2 6G | d3 H7 | s1 | s2 | b | d4 | d5 | h | l | max. | |||
| ( Insert | Thread | Bore (K) | Square | Hexagon | torque | ||||||||
| (M) | with | (V) | (SK) | [Nm] | |||||||||
| Keyway | |||||||||||||
| 12 | M 8 | ( | ( | ( | V 8 | ( | ( | 21 | 12 | 15 | 8 | 115 | 40 |
| 17 | M 10 | M 12 | K 10 | K 12 | V 10 | ( | SK 12 | 29 | 15 | 19 | 11 | 155 | 100 |
| 22 | M 14 | M 16 | K 14 | K 16 | V 12 | V 14 | SK 14 | 37 | 18 | 23 | 17 | 175 | 130 |
| 26 | M 20 | ( | K 18 | ( | V 17 | ( | SK 17 | 45 | 20 | 28 | 22 | 220 | 180 |
| 35 | M 24 | ( | K 22 | K 24 | V 19 | V 22 | SK 19 | 56 | 25 | 32 | 28 | 300 | 400 |
| 45 | ( | ( | K 25 | ( | V 24 | V 27 | SK 22 | 70 | 28 | 36 | 36 | 380 | 500 |
| Specification | Information | How to order |
| Steel Housing blackened Wearing parts hardened |
Ratchet spanners GN 317 are used for assembly and repair work. They are, however, also practical for fixed applications on any machinery and equipment. They are well designed of robust construction and simple to use. The type with knurled sleeve (B) is used in such cases where the switch-over lever becomes inaccessible. The inserts are easily interchanged and can be supplied individually. Please enquire about ratchet spanners with other handle lengths. |
Ratchet spanner GN 317-26-V17-A
Code No. 317
Insert
Code No. 317.1 |
|
|
|
