Ball levers |
GN 35 |

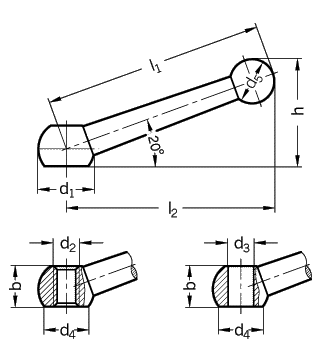

| Type N angled lever with threaded bore | Type L angled lever with plain bore, Tol. H7 |
| d1 | d2 | d3 H7 | b | d4 | d5 | h ~ | l1 | l2 ~ |
| Thread | Bore (B) | |||||||
| 16 | M 8 | B 8 | 12 | 12,5 | 13 | 32 | 63 | 60 |
| 20 | M 10 | B 10 | 14,5 | 16 | 16 | 39,5 | 80 | 76 |
| 25 | M 12 | B 12 | 18,5 | 20 | 20 | 49 | 100 | 95 |
| 32 | M 16 | B 16 | 24 | 25 | 25 | 62 | 125 | 119 |
| Specification | Information | How to order |
| Steel turned and polished |
Ball levers GN 35 Type A can be supplied without bore or flats i. e. with a solid ball. GN 35 have the same ball diameter d1 and length l1 as clamping levers DIN 99 and ball levers DIN 6337. |
Ball lever GN 35-25-M12-N
Code No. 35 |
|
|
|
