Clamping levers |
GN 99.4 |

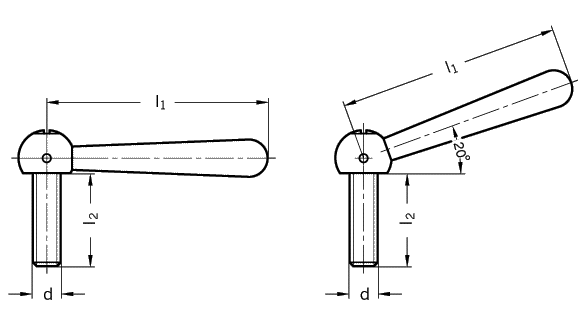

| Type MS straight lever | Type NS angled lever |
| l1 | d | Length l2 | ||||
| 63 | M 8 | 18 | 23 | 28 | 38 | 48 |
| 80 | M 10 | 25 | 30 | 35 | 45 | 55 |
| 100 | M 12 | 26 | 31 | 41 | 51 | 61 |
| 125 | M 16 | 30 | 35 | 45 | 55 | 75 |
| 160 | M 20 | 30 | 40 | 50 | 60 | 70 |
| Specification | Information | How to order |
| Steel turned and polished Clamping leverDIN 99 Grub screwGN 551.1
Screw screwed to the lever and |
The addition of the screw to the clamping lever DIN 99 increases considerably its range of applications. For most applications the listed screw lengths are sufficient, however other lengths and other screw points can be supplied. Other levers, such as those listed below, can be supplied with screws: Ball leversDIN 6337 Ball leversGN 35 Clamp nutsGN 99.5 |
Clamping lever GN 99.4-125-M16-45-NS
Code No. 99.4 |
|
|
|
