Fixed handles |
Extract from DIN 39 |

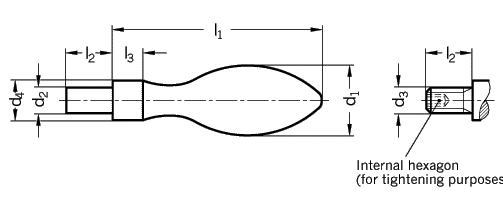

| Type D with plain shaft | Type E with threaded shaft |
| d1 | d2 h8 | d3 | d4 h13 | l1 | l2 | l3 | Internal |
| Type D | Type E | hexagon | |||||
| 16 | 7 | M 6 | 10 | 50 | 11 | 7 | 3 |
| 20 | 8 | M 8 | 13 | 64 | 13 | 8 | 4 |
| 25 | 10 | M 10 | 16 | 80 | 14 | 10 | 5 |
| 32 | 13 | M 12 | 20 | 100 | 21 | 13 | 6 |
| 36 | 16 | M 16 | 22 | 112 | 26 | 14 | 8 |
| Specification | How to order | |
| Steel (ST) all sizes turned and polished
Plastic (KT) |
Fixed handle DIN 39-ST-25-E
Code No. 39 |
|
|
|
