Revolving ball knobs |
GN 319.2 |

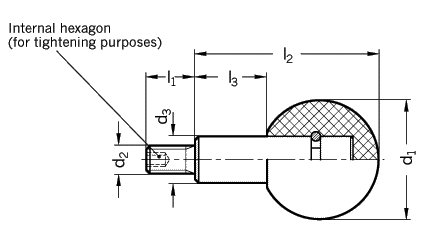

| d1 | d2 | d3 | l1 | l2 | l3 |
| 25 | M 6 | 10 | 11 | 37,5 | 15 |
| 32 | M 8 | 13 | 13 | 48 | 19 |
| 40 | M 10 | 16 | 14 | 61 | 24 |
| 50 | M 12 | 20 | 21 | 78 | 31 |
| Specification | Information | How to order |
| Plastic Duroplast (Phenolic) black shiny finish
Shaft steel |
Revolving ball knobs GN 319.2 can be utilized instead of revolving handles i. e. with handwheels. Revolving ball knobs have the same assembly dimensions as the handles DIN 39, DIN 98 and GN 598. |
Revolving ball knob GN 319.2-32-M8
Code No. 319.2 |
|
|
|
